| LCD panel | Name Type | 20'' Bar Lcd Display |
| Model number | V203TG | |
| Panel size | 20.3 inch | |
| Display Area | 509.8(H) x 90(V) | |
| LCD Type | TFT-LCD | |
| Resolution | 1920× 338 | |
| Display color | 16.7 M | |
| Brightness | 450 cd/m² | |
| Contrast | 3000 : 1 | |
| View-angle(up/down/left/right) | 89°/89°/89°/89° | |
| Response Time | 8ms | |
| Field Frequency | 60 Hz | |
| OSD Language | Chinese/English | |
| Port | HDMI | 1 |
| DVI | 1 | |
| VGA | 1 | |
| RS232 | 1 | |
| Power | Audio system | Built-in 8 Ω 5 w * 2 speakers |
| Power | AC100V～240V，50/60Hz | |
| The maximum power loss | ≦200W | |
| Standby power loss | ＜1W | |
| Environment | Operating temperature | 0℃~50℃ |
| Storage temperature | -20℃~60℃ | |
| Installation | Frame material | Metal |
| Fuselage size (long x high x thick) | 493(H) x 225(V) x 33.9 mm(D) | |
| Net weigth | 22kg | |
| Gross weight | 25kg | |
| Installation type | Wall mounted | |

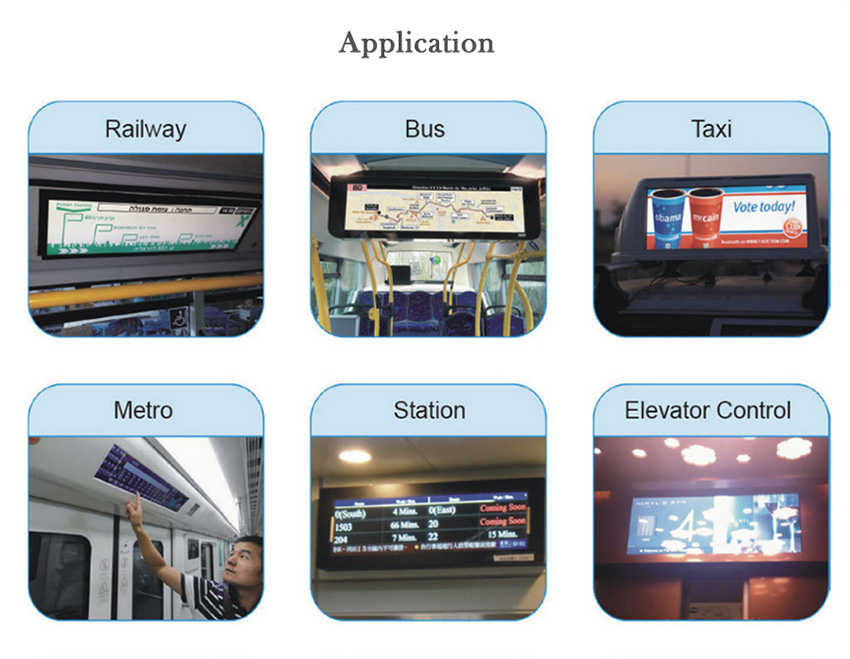

| Range of application | Indoor | |
| Accessories | Power cable | 1 |
| Manual | 1 |
